GHE server version: 2.19.2

Reference

https://github.community/t5/GitHub-Enterprise-Best-Practices/High-Availability-and-Disaster-Recovery-for-GitHub-Enterprise/ba-p/11725

https://help.github.com/en/enterprise/2.19/admin/installation/configuring-github-enterprise-server-for-high-availability



Configuring GitHub Enterprise Server for high availability - GitHub Help

Administrator Guides Installation and configuration Configuring GitHub Enterprise Server for high availability Configuring GitHub Enterprise Server for high availability GitHub Enterprise Server supports a high availability mode of operation designed to mi

help.github.com

Create 1 more EC2 instance for GHE image.

Replication server could use same license file.

Select installation type

  • Configure as Replica

After finish setup.

Run command (Replica VM)

  • ghe-repl-setup $PRIMARY_VM_IP_ADDRESS
admin@ip-172-3?-???-???:~$ ghe-repl-setup 172.3?.???.???
Generating public/private ed25519 key pair.
/home/admin/.ssh/id_ed25519 already exists.
Overwrite (y/n)? Your identification has been saved in /home/admin/.ssh/id_ed25519.
Your public key has been saved in /home/admin/.ssh/id_ed25519.pub.
The key fingerprint is:
SHA256:t3C46zQrYB/???????????????????????s1dc/e4Ho admin-ssh-key
The key's randomart image is:
+--[ED25519 256]--+
| o++o. . .       |
|..o.* + . o      |
|.. = O     +     |
|  . * o  .o o    |
|   o * oS.oo .   |
|    B O o=..     |
|   o * *+..E     |
|      =. +.      |
|       o+        |
+----[SHA256]-----+
Connection check failed.
The primary GitHub Enterprise Server appliance must be configured to allow replica access.
Visit http://172.3?.???.???/setup/settings and authorize the following SSH key:

ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIJev???????????????????????YEf1Kvx7AyBAduoMe admin-ssh-key

Run `ghe-repl-setup 172.3?.???.???' once the key has been added to continue replica setup



Use command result key

  • ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIJev?????????????????wYEf1Kvx7AyBAduoMe admin-ssh-key

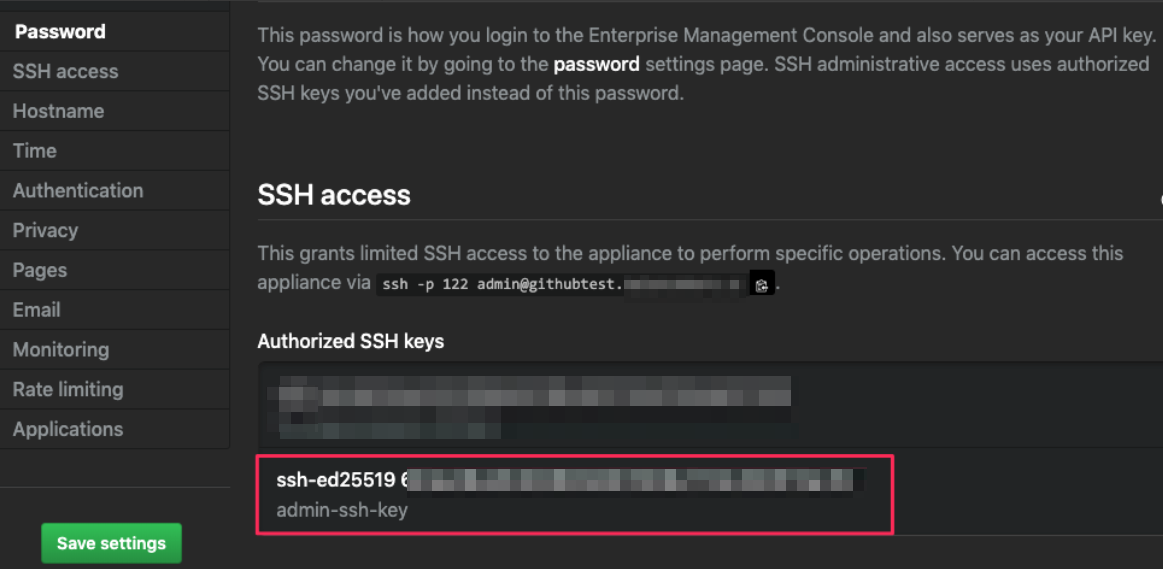

Visit Primary & add ssh key

  • Visit http://172.3?.???.???/setup/settings and authorize the following SSH key



Run command (Replica VM)

  • ghe-repl-setup $PRIMARY_VM_IP_ADDRESS
  • ghe-repl-start
  • ghe-repl-status
admin@ip-172-3?-???-???:$ ghe-repl-setup 172.3?.???.???
Verifying ssh connectivity with 172.3?.???.??? ...
Connection check succeeded.
Updating Elasticsearch configuration ...
Elasticsearch isn't listening on tcp/9200.
Copying license and settings from primary appliance ...
 --> Importing SSH host keys...
 --> The SSH host keys on this appliance have been replaced to match the primary.
 --> Please run 'ssh-keygen -R 172.3X.XX.XXX; ssh-keygen -R "[172.3X.XX.XXX]:122"' on your client to prevent future ssh warnings.
Copying custom CA certificates from primary appliance ...
Success: Replica mode is configured against 172.3?.???.???.
To disable replica mode and undo these changes, run 'ghe-repl-teardown'.
Run 'ghe-repl-start' to start replicating from the newly configured primary.



admin@ip-172-3?-???-???:$ ghe-repl-start
Verifying ssh connectivity with 172.3?.???.??? ...
Updating configuration...
Validating configuration
Updating configuration for githubtest-testserver-io-primary (172.3?.???.???)
Configuration Updated
Configuration Phase 1
githubtest-testserver-io-primary: Dec 04 05:46:52 Preparing storage device...
githubtest-testserver-io-primary: Dec 04 05:46:54 Updating configuration...
githubtest-testserver-io-primary: Dec 04 05:46:55 Reloading system services...
githubtest-testserver-io-primary: Dec 04 05:47:19 Done!
githubtest-testserver-io-replica: Dec 04 05:46:52 Preparing storage device...
githubtest-testserver-io-replica: Dec 04 05:46:54 Updating configuration...
githubtest-testserver-io-replica: Dec 04 05:46:55 Reloading system services...
githubtest-testserver-io-replica: Dec 04 05:48:11 Done!
Configuration Phase 2
githubtest-testserver-io-replica: Dec 04 05:48:12 Running migrations...
githubtest-testserver-io-replica: Dec 04 05:48:12 Done!
githubtest-testserver-io-primary: Dec 04 05:48:12 Running migrations...
githubtest-testserver-io-primary: Dec 04 05:48:28 Done!
Configuration Phase 3
githubtest-testserver-io-primary: Waiting for services to be active...
githubtest-testserver-io-primary: Dec 04 05:48:47 Reloading application services...
githubtest-testserver-io-primary: Dec 04 05:49:10 Done!
githubtest-testserver-io-replica: Dec 04 05:48:30 Reloading application services...
githubtest-testserver-io-replica: Dec 04 05:50:06 Done!
Finished cluster configuration
Success: replication is running for all services.
Run `ghe-repl-status' to monitor replication health and progress.



admin@ip-172-3?-???-???:$ ghe-repl-status
OK: mysql replication is in sync
OK: redis replication is in sync
OK: elasticsearch cluster is in sync
OK: git replication is in sync
OK: pages replication is in sync
OK: alambic replication is in sync
OK: git-hooks replication is in sync
OK: consul replication is in sync
